SVTFHeader_72 Struct Reference

VTFHeader_72 struct. More...

#include <VTFFormat.h>

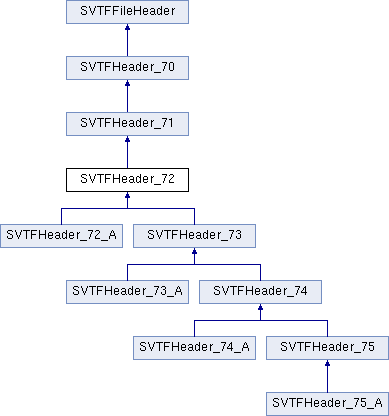

Inheritance diagram for SVTFHeader_72:

Data Fields
vlUShort	Depth
	Depth of the largest image.
Data Fields inherited from SVTFHeader_70
vlUShort	Width
	Width of the largest image.
vlUShort	Height
	Height of the largest image.
vlUInt	Flags
	Flags for the image.
vlUShort	Frames
	Number of frames if animated (1 for no animation)
vlUShort	StartFrame
	Start frame (always 0)
vlByte	Padding0 [4]
	Reflectivity padding (16 byte alignment)
vlSingle	Reflectivity [3]
	Reflectivity vector.
vlByte	Padding1 [4]
	Reflectivity padding (8 byte packing)
vlSingle	BumpScale
	Bump map scale.
VTFImageFormat	ImageFormat
	Image format index.
vlByte	MipCount
	Number of MIP levels (including the largest image)
VTFImageFormat	LowResImageFormat
	Image format of the thumbnail image.
vlByte	LowResImageWidth
	Thumbnail image width.
vlByte	LowResImageHeight
	Thumbnail image height.
Data Fields inherited from SVTFFileHeader
vlChar	TypeString [4]
	"Magic number" identifier- "VTF\0".
vlUInt	Version [2]
	Version[0].version1
vlUInt	HeaderSize
	Size of the header struct (currently 80 bytes)

Detailed Description

VTFHeader_72 struct.

The complete header for v7.2 of the VTF file format.

---

The documentation for this struct was generated from the following file:

• VTFFormat.h
